Features
- IP66 rated
- 85x85x52mm

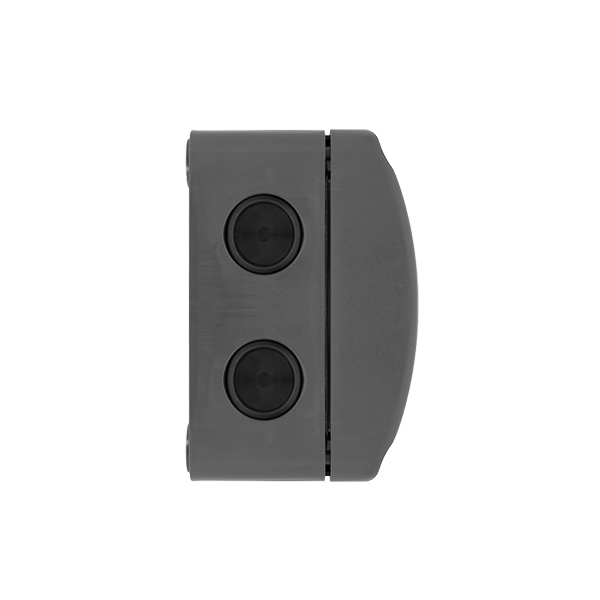

- 10 Membrane Entries
- 360o detachable cradleâ€

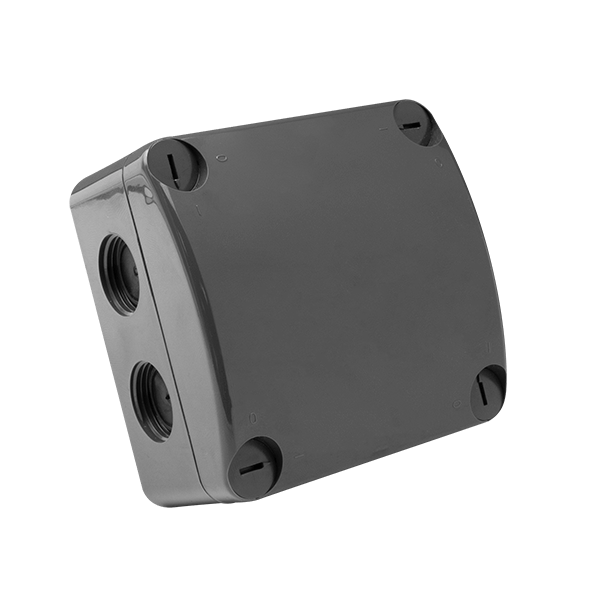

- Threaded gland entries

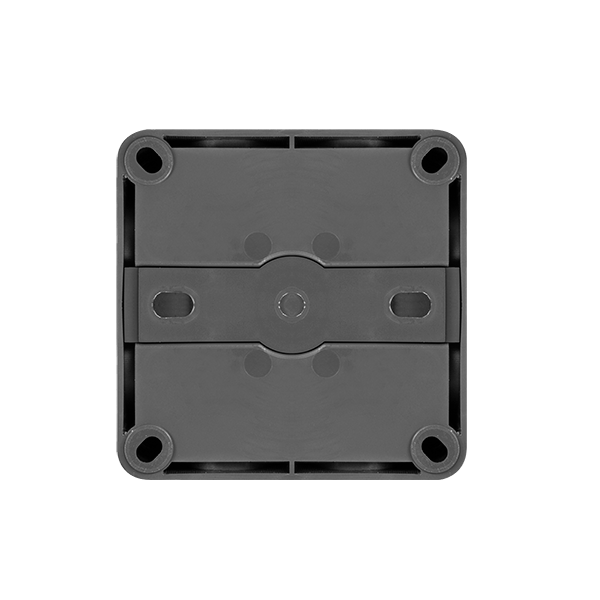

- Separate mounting bracket

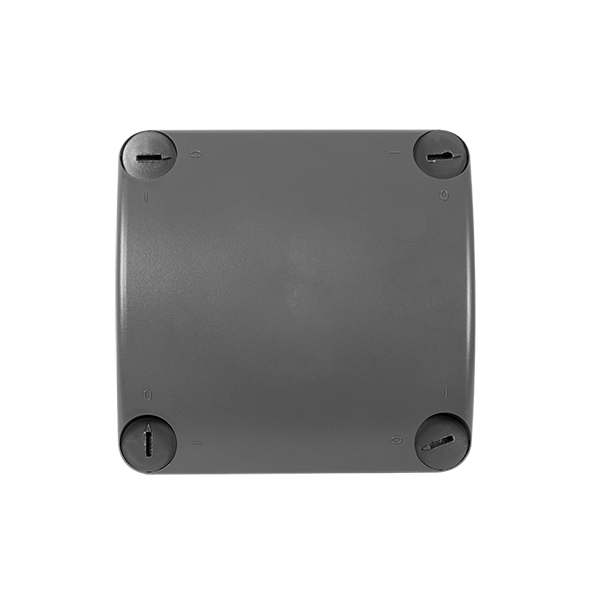

- Quarter turn cover screws
- Rear membrane entries
Play Video
Exit Zoom
Close Video
Description
The IP Box can house 4 x 3 Port Lever Connectors (QL3322) using the 360 degree detachable cradle. The IP Box also utilises a curved lid which provides additional space for wires, the lid is locked using 1/4 turn fasteners.†Protection against moisture and dust is assisted with the self sealing membranes providing a faster and more secure cable entry while maintaining the IP66 rating. The IP Box gives you the option to fix directly to a wall using 4 screws into the pre-moulded holes in the base. Or use the detachable wall clip which requires just 2 screws. Our Junction Box gives you the option of using up to 8 M20 cable glands. The M20 threaded entries with membrane ensure the IP rating is maintained without the use of tools or locknuts.
The IP Box can house 4 x 3 Port Lever Connectors (QL3322) using the 360 degree detachable cradle. The IP Box also utilises a curved lid which provides additional space for wires, the lid is locked using 1/4 turn fasteners.†Protection against moisture and dust is assisted with the self sealing membranes providing a faster and more secure cable entry while maintaining the IP66 rating. The IP Box gives you the option to fix directly to a wall using 4 screws into the pre-moulded holes in the base. Or use the detachable wall clip which requires just 2 screws. Our Junction Box gives you the option of using up to 8 M20 cable glands. The M20 threaded entries with membrane ensure the IP rating is maintained without the use of tools or locknuts.
Tech Specs
SKU
QOE8553AGY
Size
85x85x52mm
Type
Weatherproof Connectors
Brand
Q-Nect
Finish
Anthracite Grey (RAL 7016)
* For more technical information, please
download our technical data below.
download our technical data below.
