Features
- 4 x 3 Port Lever Connectors Supplied
- Semi-transparent lid
- 10 Membrane Entries
- 360o detachable cradleâ€
- Threaded gland entries
- Separate mounting bracket
- Quarter turn cover screws

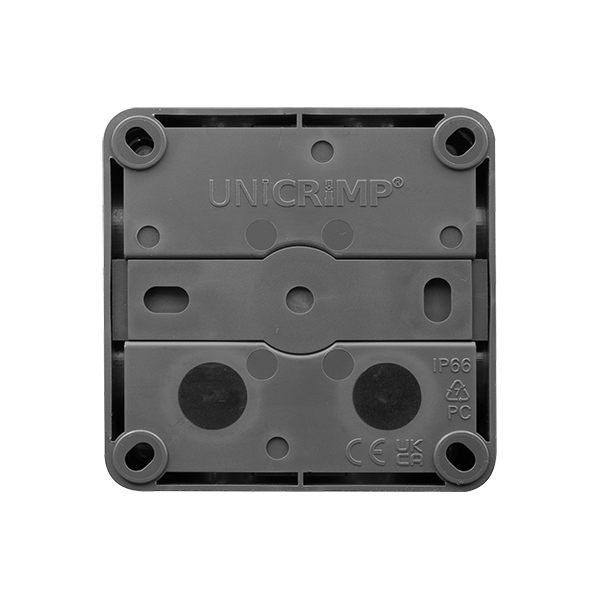

- Rear membrane entries
Play Video
Exit Zoom
Close Video
Description

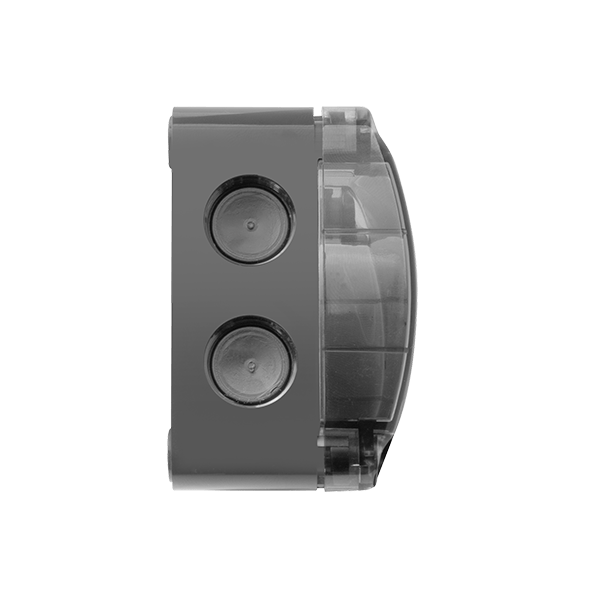

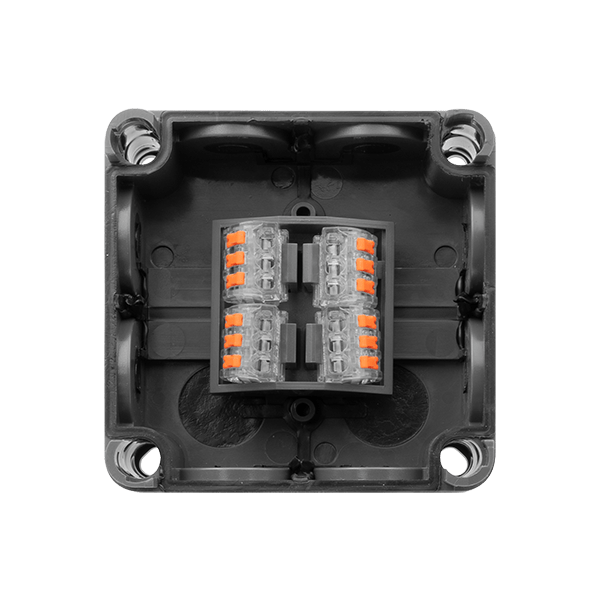

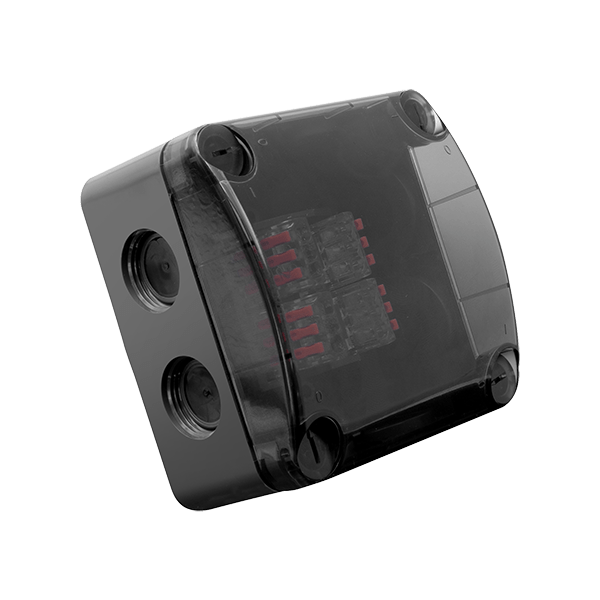

The IP Box supplied with 4 x 3 Port Lever Connectors (QL3322) and the 360 degree detachable cradle. The IP Box also utilises a curved semi-transparent lid which provides additional space for wires, the lid is locked using 1/4 turn fasteners.†Protection against moisture and dust is assisted with the self sealing membranes providing a faster and more secure cable entry while maintaining the IP66 rating. The IP Box gives you the option to fix directly to a wall using 4 screws into the pre-moulded holes in the base. Or use the detachable wall clip which requires just 2 screws. Our Junction Box gives you the option of using up to 8 M20 cable glands. The M20 threaded entries with membrane ensure the IP rating is maintained without the use of tools or locknuts.
The IP Box supplied with 4 x 3 Port Lever Connectors (QL3322) and the 360 degree detachable cradle. The IP Box also utilises a curved semi-transparent lid which provides additional space for wires, the lid is locked using 1/4 turn fasteners.†Protection against moisture and dust is assisted with the self sealing membranes providing a faster and more secure cable entry while maintaining the IP66 rating. The IP Box gives you the option to fix directly to a wall using 4 screws into the pre-moulded holes in the base. Or use the detachable wall clip which requires just 2 screws. Our Junction Box gives you the option of using up to 8 M20 cable glands. The M20 threaded entries with membrane ensure the IP rating is maintained without the use of tools or locknuts.
Tech Specs
Lid
Semi-Transparent
Size
85x85x52mm
Type
Weatherproof Connectors
Brand
Q-Nect
Finish
Anthracite Grey (RAL 7016)
IP Rating
IP66
Standards
Current Rating
32A
Connector Ports
3
Temp Rating (°C)
-30 to +120
* For more technical information, please
download our technical data below.
download our technical data below.
