Features
- IP66 rated
- 85x85x52mm
- 10 Membrane Entries
- 360o detachable cradleâ€
- Threaded gland entries
- Separate mounting bracket
- Quarter turn cover screws
- Rear membrane entries
Play Video
Exit Zoom
Close Video
Description

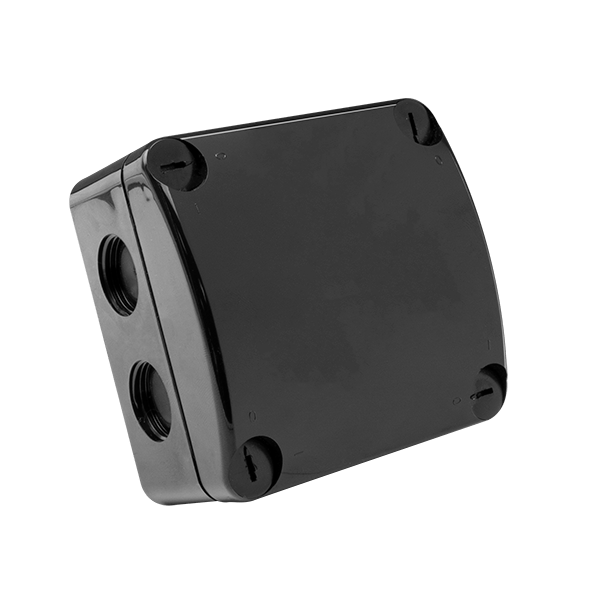

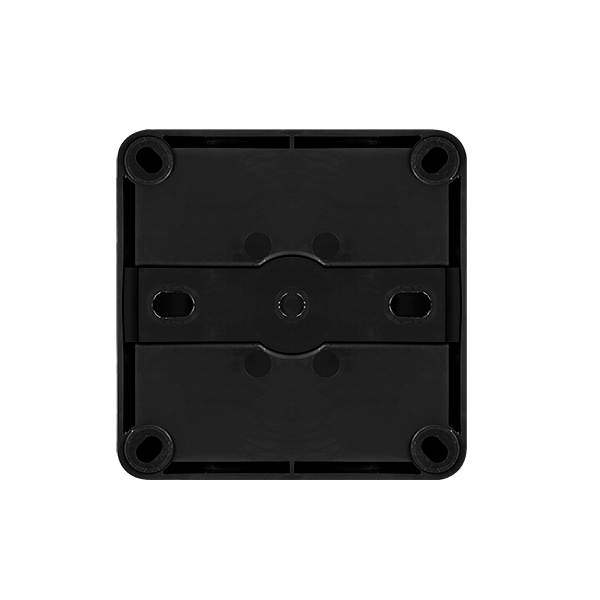

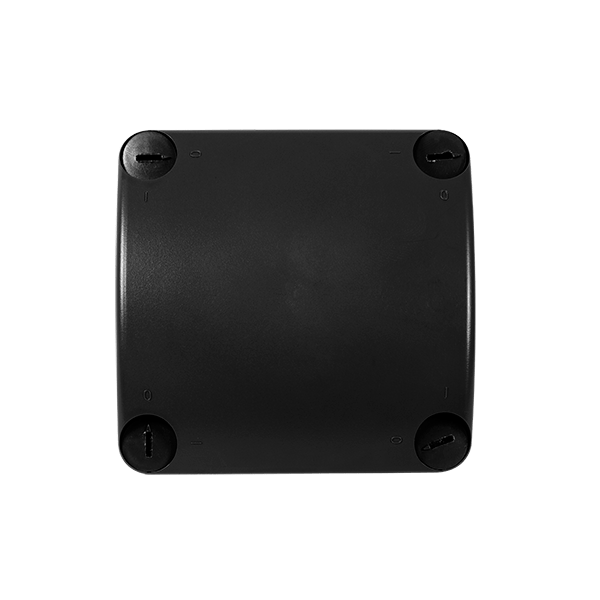

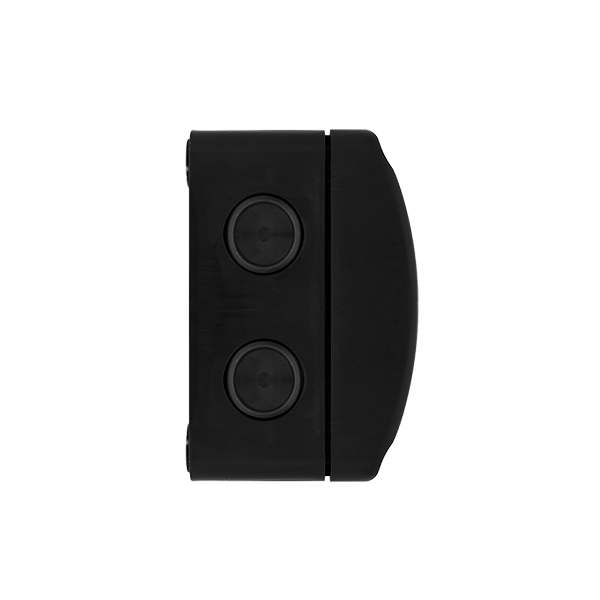

The IP Box can house 4 x 3 Port Lever Connectors (QL3322) using the 360 degree detachable cradle. The IP Box also utilises a curved lid which provides additional space for wires, the lid is locked using 1/4 turn fasteners.†Protection against moisture and dust is assisted with the self sealing membranes providing a faster and more secure cable entry while maintaining the IP66 rating. The IP Box gives you the option to fix directly to a wall using 4 screws into the pre-moulded holes in the base. Or use the detachable wall clip which requires just 2 screws. Our Junction Box gives you the option of using up to 8 M20 cable glands. The M20 threaded entries with membrane ensure the IP rating is maintained without the use of tools or locknuts.
The IP Box can house 4 x 3 Port Lever Connectors (QL3322) using the 360 degree detachable cradle. The IP Box also utilises a curved lid which provides additional space for wires, the lid is locked using 1/4 turn fasteners.†Protection against moisture and dust is assisted with the self sealing membranes providing a faster and more secure cable entry while maintaining the IP66 rating. The IP Box gives you the option to fix directly to a wall using 4 screws into the pre-moulded holes in the base. Or use the detachable wall clip which requires just 2 screws. Our Junction Box gives you the option of using up to 8 M20 cable glands. The M20 threaded entries with membrane ensure the IP rating is maintained without the use of tools or locknuts.
Tech Specs
Brand
Q-Nect
Type
Weatherproof Connectors
SKU
QOE8553BLK
Box QTY
1
Size
85x85x52mm
Material
Polycarbonate
Finish
Black (RAL 9017)
IP Rating
IP66
Temp Rating (°C)
-30 to +120
Standards
* For more technical information, please
download our technical data below.
download our technical data below.
